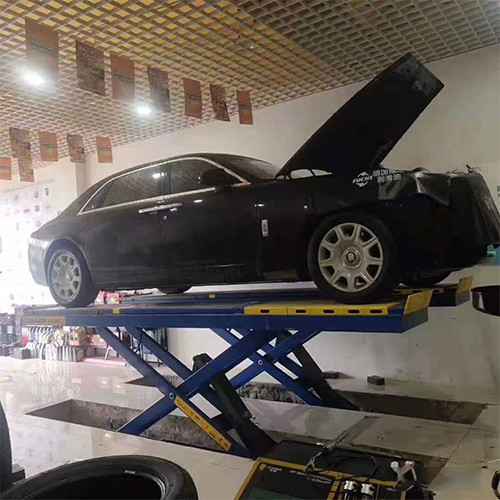

4000kg Wheel alignment scissors lift with 4.5M platform with CE

Brand Name : Iter

Model Number : T400D

Certification : CE

Place of Origin : Guangdong

MOQ : 1 set

Payment Terms : L/C,T/T,Western Union

Supply Ability : 5000sets/month

Delivery Time : 5-10days

Packaging Details : steel frame and carton

Color : red/blue/yellow/grey

voltage : 380V/220V as your request

volume : 3cbm

package : export standard

warranty : 1 year

brand : Iter/OEM

Contact Now

4000kg Wheel alignment scissors lift with 4.5M platform with CE

Features:
In-ground installation.
Ideal choice for alignment and chassis checking and vehicle maintenance.
Adjustable turntable position adapts to more types of vehicle.
Its central jack, with a maximum of 500mm lifting height, is extensible for longer vehicles.
Aluminum motor prevents overheated.
The mechanical safety self-lock system for safety while lifting.
Pneumatic release system decreases noise emitted during service work.

Technical Data

Lifting Capacity

8800Lbs/4000kg

Secondary Lifting Height

18.5"/470mm

Lifting Height

78.35"/1990mm

Lifting Time for jack

20seconds

Lifting Time for Large Scissor

30seconds

Min Height

13"/330mm

Air Source Pressure

5-6kg/cm²

Platform Width

24"/620mm

Width between two platforms

33.5"/850mm

Overall Length

177.17"/4500mm

Motor Voltage

220V/380V

Frequency

50Hz or 60Hz

Phase

1Ph/3Ph

Net Weight

4091Lbs/1856kg

Details:

4000kg Wheel alignment scissors lift with 4.5M platform with CE4000kg Wheel alignment scissors lift with 4.5M platform with CE

safety lock system                                            secondary jacks


4000kg Wheel alignment scissors lift with 4.5M platform with CE4000kg Wheel alignment scissors lift with 4.5M platform with CE

different sizes for the turntable cover                     Control box

4000kg Wheel alignment scissors lift with 4.5M platform with CE4000kg Wheel alignment scissors lift with 4.5M platform with CE

Alumimum pump station easy for cooling      Circuit board

4000kg Wheel alignment scissors lift with 4.5M platform with CE
