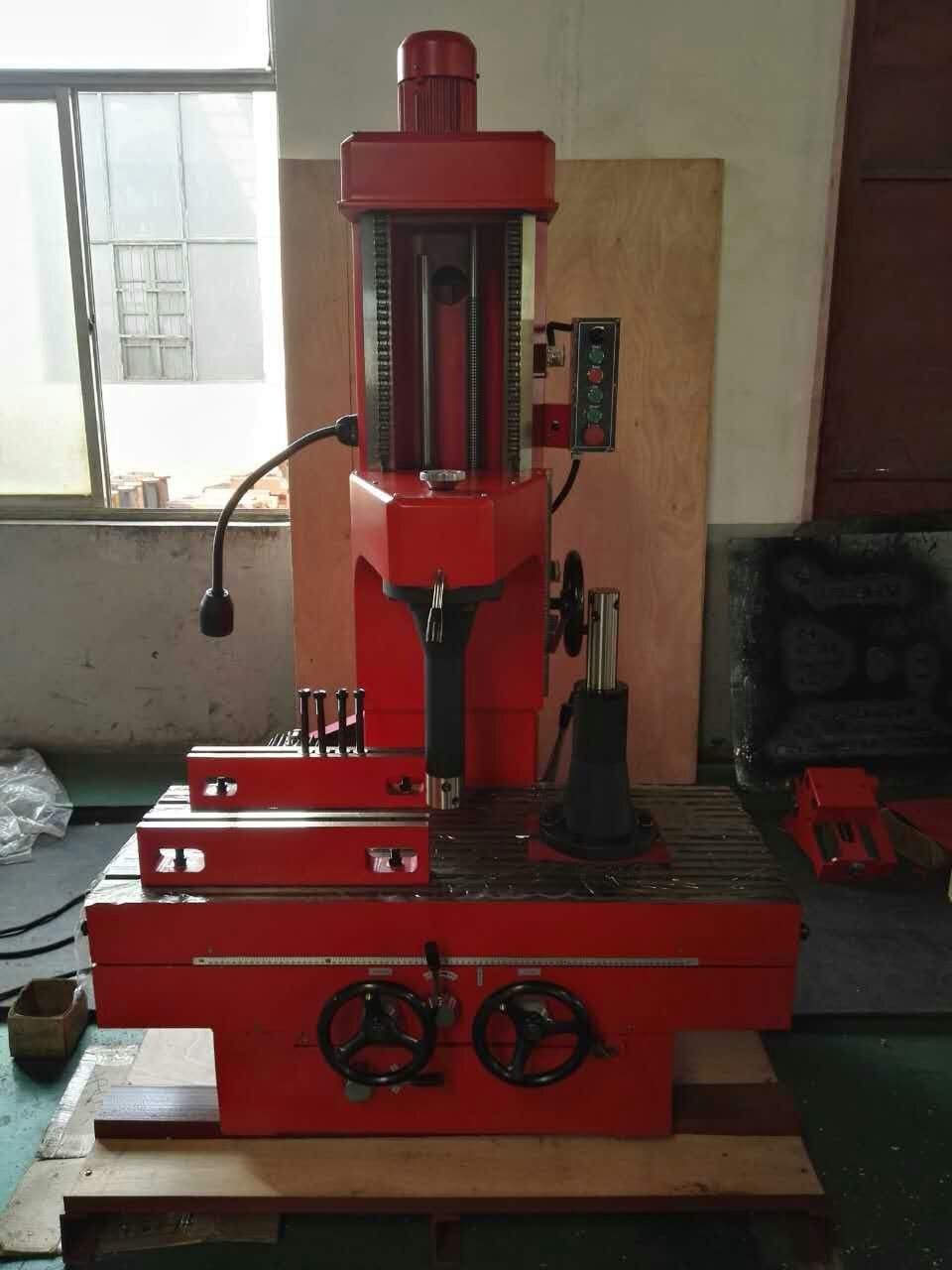

T8018A Cylinder Boring Machine an essential tool for precise, efficient cylinder boring
Features
1. High Precision Boring The T8018A offers high-precision cylinder boring, ensuring perfect alignment and smooth finishes for engine cylinders. It allows for exact diameter adjustments, improving the performance and longevity of the engine.
2. Powerful Motor Equipped with a high-power motor, the T8018A delivers stable and consistent performance, capable of handling demanding tasks like boring large and heavy cylinders. The motor ensures fast and efficient operation, reducing the time spent per job.
3. Adjustable Speed Control The machine features an adjustable speed control, allowing the operator to set the optimal speed based on the material and desired finish. This flexibility helps achieve fine-tuned results, whether for rough boring or precision finishing.
4. Easy Setup and Operation The T8018A is equipped with an easy-to-use interface, making it simple to adjust settings for different engine cylinder sizes. The machine’s design is intuitive, allowing operators to set up quickly and maintain consistent performance during operation.
Technical data
| Model | T8018A |
| processing diameter | 30-180mm |
| Max boring depth | 18”/450mm |
| Spindle speed | Variable |
| Rapid moving speed of the spindle | 2650mm/min |
| Distance between spindle End face and table | 0-500 |
| Max longitudinal travel of the working table | 800mm |
| Max cross travel of the working table | 100mm |
| Working table size | 1200*500mm |
| Main motor | 3.3/4kw |
| Overall diamensions | 2000*1230*1920mm |
| Packing diamensions | 1370*1370*2250 |
| N.W/G.W | 2000/2100kg |
