Name: C9350C Brake Lathe Brake Disc Skimming Machine 075kw For Disc And Drum Cutting
Brand: Iter
Price: 1 USD

Brand Name : Iter

Model Number : C9350C

Certification : CE

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C,T/T,Western Union

Supply Ability : 1000sets/month

Delivery Time : 5-10 day

Packaging Details : export standard, plywood boxes

color : red/blue

voltage : 220V/380V/as your request

Spindle speed rpm : 70,88,118

machinery test report : provided

Rotor thichness : 1.875"/480mm

Gross weight : 330kg

Contact Now

C9350C Brake Lathe for Disc and Drum Cutting – Brake Disc Skimming Machine

1. DC motors designed to meet the demanding requirement of industrial motion control.

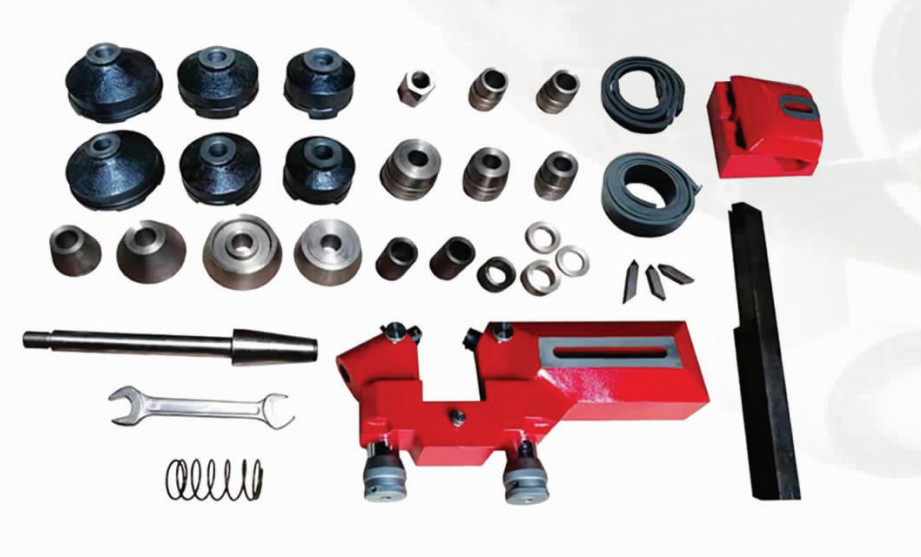

2. “Change Adapter″ system to eliminate the need for conventional bell clamps and cones.

3. The precision twin cutter tools and a quick drum to rotor changeover to help increase your service capability.

4. Infinitely variable spindle and cross feed speed settings for quick rough and precision finish cuts.

5. Positive rake cutter tip angle provides for a one pass finish virtually every time, allowing you to complete your work fast.

Technical data

Model	C9350C
Brake disc diameter	178-368mm
Brake disc thickness	480mm
Brake drum diameter	152-450mm
Brake drum depth	160mm
Spindle speed rpm	70,88,118
Cross/Spindle Feeding capacity	0-0.4mm/r
Motor power	0.75kw
Gross weight	330KG
Package	12009001500mm

C9350C Brake Lathe Brake Disc Skimming Machine 0.75kw For Disc And Drum Cutting
